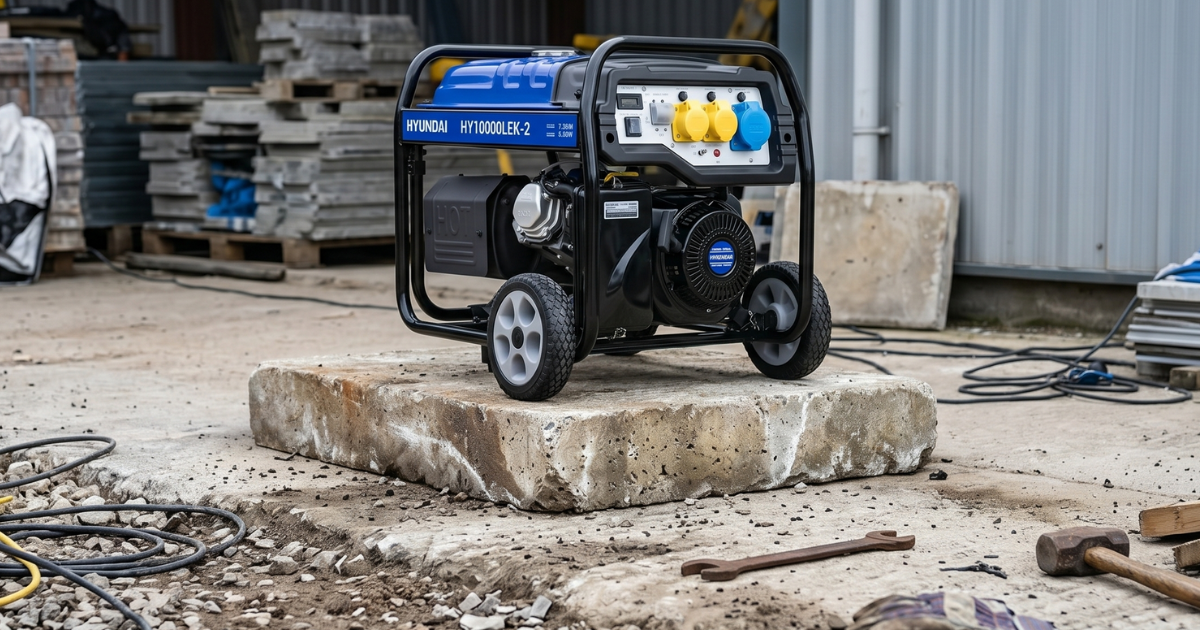

Hyundai HY10000LEK-2 Open Framed Generator Review
Hyundai HY10000LEK-2 review: Powerful 8kW petrol site generator with AVR, 12.5hr runtime and excellent value for heavy-duty trade use.
Key takeaways
- The HY10000LEK-2 is Hyundai's flagship open-frame petrol site generator — the top of the single-phase petrol range, positioned one step above the 7kW HY9000LEK-2.
- The HY460 is the larger of Hyundai's two generator engine units — a 459cc single-cylinder 4-stroke OHV producing 16hp.
- The extra 1kW over the HY9000LEK-2 opens up a category of loads that would regularly push the 7kW machine into its overload protection.
- Generator Pro confirms a run time of 12.5 hours at 50% load (approximately 4kW), which exceeds the HY9000LEK-2's 11.2 hours at its 50% load figure.
- These two machines share the same frame dimensions, socket layout, wheel kit, AVR alternator specification, and operational design.
Our Rating
Hyundai HY10000LEK-2 Open Framed Generator Review
Mark Moore - Power Equipment & Site Machinery Team
Assessed against real site, trade, and agricultural power requirements · Full specification verified across Hyundai Power Equipment UK and authorised trade distributors · Reviewed June 2026
⚡ Expert Verdict
The Hyundai HY10000LEK-2 Open Framed Generator is the step-up machine in Hyundai's open-frame petrol generator range - one step above the 7kW HY9000LEK-2 and, crucially, one of the most powerful single-cylinder petrol generators available on the UK market. The 459cc 16hp HY460 engine pushes maximum output to 8kW / 10.6kVA, adding meaningful headroom for contractors running heavy loads — large compressors, welders, multiple 110V tools simultaneously, or catering rigs that would push a 7kW machine to its limits. The 25-litre tank, copper-wound AVR alternator, dual-voltage sockets, electric key start, and 3-year Hyundai warranty are all carried over from its smaller sibling. The trade-off for the extra power is a slight noise increase: 70 dBA @ 7m vs 65 dBA on the HY9000LEK-2. At roughly £850–£1,000 depending on supplier, it sits at a competitive price for 8kW of verified single-phase output. If you regularly push a 7kW generator close to its limits, the HY10000LEK-2 is the right next step.
4.5 / 5 — Highly Recommended for Heavy-Demand Site & Trade Use
Power Output
★★★★★
AVR & Power Quality
★★★★★
Portability
★★★★☆
Value for Money
★★★★★
Hyundai HY10000LEK-2 — 8kW / 10.6kVA Petrol Open Frame Site Generator, Electric & Recoil Start, Wheel Kit
Direct from Hyundai Power Equipment UK · 3-Year Platinum Warranty · Full UK Parts Backup · 459cc 16hp HY460 Engine
⚠ Carbon Monoxide — Never Run Indoors
Petrol generators produce carbon monoxide — a colourless, odourless gas that is rapidly fatal in enclosed spaces. The HY10000LEK-2 must be operated outdoors in open air, away from doors, windows, and ventilation intakes at all times. Never run any petrol generator inside a building, garage, tent, or partially enclosed space under any circumstances.
1. What Is the HY10000LEK-2 and Where Does It Sit?
The HY10000LEK-2 is Hyundai's flagship open-frame petrol site generator — the top of the single-phase petrol range, positioned one step above the 7kW HY9000LEK-2. The step up is driven by a larger, more powerful engine: the HY460, a 459cc 16hp single-cylinder 4-stroke OHV unit that Hyundai claim is one of the most powerful single-cylinder petrol engines in a UK generator at this price point. The extra 39cc of displacement and 2hp over the SC420 in the HY9000LEK-2 translate to a 14% increase in maximum output — from 7kW to 8kW.
That 1kW difference matters more than the numbers suggest. The additional headroom means the machine can absorb the startup surge of heavy motors — compressors, welders, and pumps — without tripping the overload protection or causing voltage sag on other connected loads. It also means you can run the generator at a lower percentage of its rated output for a given task, which reduces wear and can improve fuel economy over a working day.
📋 Who Should Buy the HY10000LEK-2 vs the HY9000LEK-2?
Choose the HY10000LEK-2 if you regularly run heavy motor loads (compressors, welders, electric pumps), frequently need the full output of a 7kW machine, operate multiple high-draw tools simultaneously, or want headroom in reserve for unexpected load spikes. Choose the HY9000LEK-2 if your typical load sits comfortably below 6kW and budget is a primary consideration — and you'll benefit from its 5 dBA lower noise level.
2. Full Specifications
| Specification | Detail |
|---|---|
| Model | Hyundai HY10000LEK-2 |
| Engine model | Hyundai HY460 — single cylinder, 4-stroke OHV, air-cooled |
| Engine capacity | 459cc / 16hp |
| Maximum output | 8kW / 10.6kVA |
| Continuous output | ~7.5kW (plan loads around this figure) |
| Rated speed | 3,000 RPM |
| Voltage regulation | Copper-wound AVR — ±3% of 230V |
| Output sockets | 1 × 230V / 32A + 2 × 115V / 16A |
| Phase / frequency | Single phase / 50Hz |
| Start method | Electric key start (primary) + recoil pull-start (backup) |
| Fuel type | Petrol (4-stroke — no mixing required) |
| Fuel tank capacity | 25 litres (long-run tank) |
| Run time @ 50% load | 12.5 hours |
| Display | Digital — hours run, output voltage, frequency |
| Protections | Low oil automatic shutdown + overload protection / circuit breaker |
| Casing type | Open frame (not silenced) |
| Noise level | 70 dBA @ 7m / 96 dBA at source |
| Wheel kit | Included — puncture-proof tyres, assembles in minutes with two bolts |
| Net weight | 94kg (net) / 94kg (gross per multiple sources) |
| Dimensions (H × W × L) | 700 × 650 × 655mm |
| Warranty | 3 years Platinum (Hyundai UK) |
| Price (at time of review) | ~£850–£1,000 inc. VAT (supplier dependent) |
3. The HY460 Engine - 459cc at the Top of the Single-Cylinder Petrol Class
The HY460 is the larger of Hyundai's two generator engine units — a 459cc single-cylinder 4-stroke OHV producing 16hp. At this displacement, Hyundai are right to note it is at the upper limit of what a single-cylinder petrol engine can practically deliver in a portable open-frame format. Going beyond 8kW on petrol generally means moving to twin-cylinder engines, which add weight, cost, and complexity.
For the operator this means one important practical reality: the HY10000LEK-2 is extracting close to the maximum from its engine configuration. It runs at 3,000rpm like all 50Hz generators in this class, and at full load it is working hard. This reinforces the importance of using the continuous output rating (approximately 7.5kW) as the planning figure for sustained loads, keeping the maximum 8kW figure for transient peaks such as motor startups.
4. What 8kW Powers on a Real Site
The extra 1kW over the HY9000LEK-2 opens up a category of loads that would regularly push the 7kW machine into its overload protection. Welders, large compressors, and high-powered site saws all benefit from the additional headroom. The table below maps realistic site loads to the HY10000LEK-2's output:
| Application / load | Running draw | Startup surge | HY10000LEK-2 suitability |
|---|---|---|---|
| 110V site tools × 2–3 (grinders, saws, drills) | 1.5–3kW | 2–6kW | ✓ Easily — significant headroom |
| MIG / MMA welder (arc-start) | 3–5kW | 5–7kW | ✓ Yes — headroom on 8kW max |
| Large site compressor (3–5hp motor) | 2.2–3.7kW | 5–8kW | ⚠ Within limits — stagger with other motor starts |
| Site lighting rig + 110V tools | 3–5kW combined | — | ✓ Yes — typical site configuration |
| Mobile catering unit (full rig) | 4–6kW | — | ✓ Comfortable capacity |
| Table saw (230V, 3kW+) + other tools | 3.5–5kW combined | Up to 7kW | ✓ Handled — monitor under simultaneous starts |
| Home essential backup during outage | 2–4kW | — | ✓ Substantial reserve at this load |
| Three-phase industrial machinery | Varies | — | ✗ Single phase only — use a 3-phase generator |
⚠ Startup Surge — Plan Your Heaviest Loads Carefully
Electric motors (compressors, pumps, large saws) draw 2–3× their running wattage for a fraction of a second on startup. A 3kW compressor can pull 7–8kW at the moment of starting. At 8kW maximum, the HY10000LEK-2 has the capacity to handle these starts — but avoid starting two or more heavy motors simultaneously. Stagger startups and monitor the circuit breaker on demanding multi-tool setups.
5. Runtime and Running Economy
The 25-litre tank is the same specification as the HY9000LEK-2, but the larger HY460 engine is more economical at 50% load than many would expect — the additional displacement means the engine is working at a lower fraction of its capacity for a given output, which can actually improve fuel efficiency at moderate loads. Generator Pro confirms a run time of 12.5 hours at 50% load (approximately 4kW), which exceeds the HY9000LEK-2's 11.2 hours at its 50% load figure. This is a practical advantage of the larger engine at moderate loads.
| Load level | Approx. output | Run time (25L tank) | Approx. fuel cost/hr* |
|---|---|---|---|
| 50% load | ~4kW | 12.5 hours | ~£3.10–£3.50 |
| 75% load | ~6kW | ~8–9 hours | ~£4.50–£5.50 |
| 100% load | 8kW | ~5.5–6 hours | ~£6.50–£7.50 |
*Based on UK pump petrol at approximately £1.55–£1.60/litre. Prices vary by location and time. 75% and 100% load fuel consumption estimated from published data.
6. HY10000LEK-2 vs HY9000LEK-2 — Direct Comparison
These two machines share the same frame dimensions, socket layout, wheel kit, AVR alternator specification, and operational design. The differences between them are meaningful, concentrated, and worth mapping precisely before deciding which to buy:
| Specification | HY10000LEK-2 ★ (this model) | HY9000LEK-2 (step-down) |
|---|---|---|
| Engine | HY460 — 459cc / 16hp | SC420 — 420cc / 14hp |
| Max output | 8kW / 10.6kVA | 7kW / 8.75kVA |
| Continuous output | ~7.5kW | 6.5kW |
| Run time @ 50% load | 12.5 hours | 11.2 hours |
| Noise @ 7m | 70 dBA | 65 dBA |
| Fuel tank | 25 litres | 25 litres |
| Sockets | 1 × 230V/32A + 2 × 115V/16A | 1 × 230V/32A + 2 × 115V/16A |
| AVR alternator | Copper-wound, ±3% | Copper-wound, ±3% |
| Dimensions | 700 × 650 × 655mm | 700 × 655 × 650mm |
| Price premium | ~£850–£1,000 | ~£695–£850 |
The bottom line: For an additional outlay of approximately £150–£200, the HY10000LEK-2 delivers 1kW more output, 1.3 more hours of runtime at 50% load, and slightly improved capability with heavy motor loads. The only genuine cost is 5 dBA of additional noise. If your loads regularly push 6kW or above, the HY10000LEK-2 is the correct choice. If your loads are reliably under 5kW, the HY9000LEK-2 is quieter and costs less.
7. Features — AVR, Display, Start System, and Practical Design
Copper-Wound AVR Alternator
Maintains output within ±3% of 230V under varying load. Safe for site laptops, monitors, payment terminals, and monitoring systems alongside power tools. Copper windings deliver better conductivity and longer service life than aluminium alternatives at this price.
Electric Key Start + Recoil Backup
Push-button electric start with recoil fallback. The generator recharges its own battery during operation. The dual-start system means no single point of failure — critical on a site where the generator is the only power source.
Digital Display
Shows hours run, output voltage, and frequency. Hours run is the service scheduling metric — track it and service on time to get thousands of hours from the HY460 engine. Voltage and frequency confirmation before connecting sensitive loads is good practice.
Low Oil Auto-Shutdown
Engine cuts out automatically before oil pressure drops to damaging levels. Essential on a machine that may run unattended on site. Check oil before every use regardless — the shutdown is a last resort, not an oil management system.
Control-Panel Socket Placement
All three sockets face the control panel end of the frame — not the sides. When wheeling through narrow site access, cables trail towards the operator rather than snagging on the frame. A practical engineering choice that matters daily.
Open Frame — Weather Cover Required
No silenced canopy or weatherproofing. Operators must provide a generator tent or shelter for outdoor use in rain. Standard at this price point for open-frame generators — budget accordingly for wet sites.
8. Noise - 70 dBA @ 7m, Honestly Assessed
At 70 dBA @ 7m, the HY10000LEK-2 is 5 dBA louder than the HY9000LEK-2 (65 dBA). That 5 dBA difference is perceptible — decibels are logarithmic, and 70 dBA is approximately twice the perceived loudness of 65 dBA. For a construction site, 70 dBA at 7 metres is entirely workable; it sits below the noise level of most site tools in operation. For a residential setting, it is noticeably louder than the smaller machine and will be more audible to neighbours.
At source, the spec sheet shows 96 dBA — essentially the same as the HY9000LEK-2's 97 dBA, which makes sense given the muffler design is carried across both machines. Hearing protection is required for operators working adjacent to the running machine for extended periods. HSE requires hearing protection above 80 dBA averaged over an 8-hour shift — at 70 dBA at 7 metres, most site workers at normal operating distances are below this threshold.
⚠ Noise on Sensitive Sites
At 70 dBA @ 7m, the HY10000LEK-2 is suitable for construction sites but will be clearly audible in residential areas. Check local authority noise restrictions before operating near homes. If quiet operation near residential properties is a regular requirement, the HY9000LEK-2 at 65 dBA is the better choice — or consider Hyundai's silenced diesel canopy range.
9. Pros & Cons
✓ Where It Excels
- 8kW max / ~7.5kW continuous — the most powerful single-cylinder petrol generator in Hyundai's open-frame range
- 459cc HY460 engine — one of the most powerful single-cylinder petrol engines in a UK generator at this price point
- Handles welders, large compressors, and multi-tool setups that would push a 7kW machine to its overload protection
- 12.5 hours @ 50% load from the 25-litre tank — longer than the HY9000LEK-2 at equivalent relative load
- Copper-wound AVR alternator — ±3% voltage stability for electronics and heavy site tools simultaneously
- Dual voltage: 1 × 230V/32A and 2 × 115V/16A — standard site tool compatibility built in
- Electric key start with recoil backup — no single-point-of-failure starting system
- Digital display showing hours run, voltage, and frequency
- Low oil auto-shutdown and overload circuit breaker both present
- Same compact frame footprint as the 7kW model — no extra space required on site
- 3-year Platinum Warranty with full UK parts and service backup
- Competitively priced vs Stephill, Pramac, and other established brands at 8kW output
✗ Limitations to Know
- 70 dBA @ 7m — 5 dBA louder than the HY9000LEK-2; relevant for noise-sensitive residential sites
- Open frame — no weatherproofing; rain shelter must be provided separately for outdoor use
- Single phase only — no three-phase output; not suitable for 3-phase industrial motors
- 115V sockets deliver approximately 50–60% of rated output — do not plan full 8kW loads on 115V circuits
- 94kg requires two people or a ramp to load into a van or onto a trailer
- Air-cooled 3,000rpm — standby and periodic heavy use only; not rated for prime 24/7 continuous operation
- Petrol fuel costs — at high load, operating cost is a real consideration for daily professional use
- Requires carburettor care for long-term storage — E10 petrol degrades rapidly without fuel stabiliser
10. How It Compares — UK 8kW Site Generator Market
| Model | Max output | AVR | Tank / runtime | Noise | Price guide |
|---|---|---|---|---|---|
| Hyundai HY10000LEK-2 ★ | 8kW / 10.6kVA | ✓ Copper | 25L / 12.5hr | 70 dBA @ 7m | ~£850–£1,000 |
| Hyundai HY9000LEK-2 | 7kW / 8.75kVA | ✓ Copper | 25L / 11.2hr | 65 dBA @ 7m | ~£695–£850 |
| Stephill SE8000M | 8kW | ✓ AVR | 15L / ~7hr | ~72 dBA | ~£1,200–£1,500 |
| Pramac S12000 petrol | 8.5kW | ✓ AVR | 12L | ~74 dBA | ~£1,400–£1,800 |
| Hyundai DHY12000SELR (diesel, silenced) | 8.5kW | ✓ AVR | ~20hr run | 72 dBA (canopy) | ~£1,800–£2,000 |
vs diesel (Hyundai HY9000LEK-2 : The HY9000LEK-2 is powered by the SC420 - a 420cc 14hp OHV 4-stroke. The HY10000LEK-2 uses the larger HY460 - a 459cc 16hp unit that Hyundai describe as one of the most powerful single-cylinder petrol generator engines on the UK market. Read our detailed comparison: Hyundai 7kW Vs 8kW Open Framed Generator - Which should you choose? >
vs Stephill SE8000M (~£1,200–£1,500): Stephill's 8kW machine carries the best hire-fleet reliability track record in the UK market at this output. At £300–£500 more than the Hyundai, it also has a smaller tank and is noisier. For contractors who need proven long-term durability across 300+ working days per year, the Stephill is worth the premium. For owner-operators doing frequent but not daily commercial use, the Hyundai undercuts it significantly with comparable specification.
vs Pramac S12000 (~£1,400–£1,800): Italian build, strong dealer network, good reliability — but the Pramac costs up to twice the Hyundai for equivalent output, with a smaller tank and higher noise. The specification case for the Hyundai at this price gap is difficult to argue against for most buyers.
vs diesel (Hyundai DHY12000SELR, ~£1,800): If your machine runs 8+ hours daily or every working day, a diesel generator has significantly lower fuel cost per hour, much longer service intervals, and a substantially longer engine lifespan. At sustained daily use, the £800–£1,000 capital premium of a diesel unit pays for itself in fuel and service savings. For regular but not daily heavy use, the petrol HY10000LEK-2 remains better value.
11. Maintenance Schedule
| Task | Interval | Notes |
|---|---|---|
| Oil level check | Before every use | The low oil shutdown is a last resort — check before starting to avoid disruptions mid-operation. Refer to the manual for the correct oil grade and capacity for the HY460 engine. |
| First oil change | After first 20 hours | Critical — new engines shed metal particles during run-in. Change oil early, then transition to standard intervals. Do not skip this service. |
| Oil change | Every 100 hours | Use the digital hours display to track. Drain when warm for best results. Keep a paper service record — useful for warranty claims and resale value. |
| Air filter inspection | Every 50 hours (more on dusty sites) | The HY460 is a high-output engine — a blocked air filter causes power loss and rich running quickly. Concrete, plaster, and sawdust sites need more frequent checks. |
| Spark plug check | Every 100 hours / annually | Check gap and electrode condition. Replace annually for seasonal-use machines. Cheap insurance against hard starting at the worst possible moment. |
| Long-term storage | If storing 4+ weeks | Run the carburettor dry or add fuel stabiliser to the tank. E10 petrol degrades and congeals in carburettor jets within weeks — this is the primary cause of post-storage starting failures on petrol generators. |
12. Detailed Score Breakdown
| Criteria | Score | Comment |
|---|---|---|
| Power output | 9.5/10 | 8kW from a single-cylinder petrol engine is class-leading at this price; handles welders, compressors and multi-tool loads that exceed the HY9000LEK-2's capacity |
| Power quality (AVR) | 9/10 | Copper-wound AVR at ±3% is the correct specification for safe simultaneous use of electronics and site tools |
| Runtime & economy | 9/10 | 12.5 hours @ 50% load is a full working day from one fill — the larger engine is more efficient at moderate loads relative to its capacity |
| Portability | 7.5/10 | 94kg with the included wheel kit is manageable on level surfaces; van/trailer loading needs two people — standard for this output class |
| Ease of use | 8.5/10 | Electric key start with recoil backup, digital display, clear controls — well-executed for a site machine |
| Noise level | 7/10 | 70 dBA @ 7m is fine for construction sites; 5 dBA louder than the HY9000LEK-2 — relevant for noise-sensitive residential locations |
| Build quality | 8/10 | Solid open frame; copper-wound alternator reflects quality investment; long-term commercial track record building as model matures in the UK |
| Value for money | 9/10 | At ~£850–£1,000 with 8kW, copper AVR, 25L tank, electric start and 3-year warranty, it undercuts Stephill and Pramac equivalents by £300–£800 |
| Overall | 4.5 / 5 | Highly recommended for heavy-demand site, trade and agricultural applications |
13. Our Verdict
The HY10000LEK-2 is the right machine for contractors and operators who have found a 7kW generator to be limiting. At 8kW maximum from a 459cc 16hp engine — genuinely one of the most powerful single-cylinder petrol generators on the UK market at this price — it handles the loads that trip 7kW machines: welders, large compressors, and demanding multi-tool site configurations. The copper-wound AVR, 25-litre long-run tank, dual-voltage socket layout, electric key start with recoil backup, digital display, and 3-year Hyundai warranty are all present and correct.
At £850–£1,000, it undercuts Stephill and Pramac equivalents by £300–£800 for comparable specification. The noise step up to 70 dBA (vs 65 dBA on the HY9000LEK-2) is the one genuine trade-off — relevant for sensitive residential sites, manageable everywhere else. The 115V output limitation (50–60% of rated power on those sockets) is worth understanding but not a problem for normal site tool use. For heavy-demand site, trade, agricultural, and commercial backup applications where 7kW is not enough, the HY10000LEK-2 is a compelling choice.
⚡ Garden-Review Site Power Recommendation
Buy If
You regularly run welders, large compressors, or multi-tool site setups that push a 7kW machine close to its overload protection
Buy If
You want the most powerful single-cylinder open-frame petrol generator in Hyundai's range, with 8kW output and 12.5hr runtime, under £1,000
Step Down To
Hyundai HY9000LEK-2 at ~£695–£850 if your loads sit reliably below 6kW and you need quieter operation near residential properties
Consider Instead
A Hyundai diesel canopy unit if you need daily continuous running, weather protection, or significantly lower long-term fuel costs
4.5 / 5 — Highly Recommended for heavy-demand site, trade and agricultural power
Alternatives Worth Considering
- Hyundai HY9000LEK-2 — 7kW sibling; quieter (65 dBA), £150–£200 cheaper; right choice if loads consistently sit below 6kW
- Stephill SE8000M — 8kW UK-built machine with the best UK hire-fleet track record; costs £300–£500 more but proven longevity for sustained daily commercial use
- Hyundai DHY12000SELR (diesel silenced) — 8.5kW silenced diesel for daily or continuous use; significantly better fuel economy and engine life at higher capital cost
- Pramac S12000 petrol — 8.5kW Italian build with strong UK dealer support; costs significantly more than the Hyundai for similar specification
Expert review based on verified specifications from Hyundai Power Equipment UK. Price range ~£850–£1,000 inc. VAT reflects pricing across authorised UK stockists at time of publication. This review may contain affiliate links - Garden-Review may earn a commission on purchases made through these links, at no extra cost to you. Editorial opinions are always independent. Never operate a petrol generator indoors or in enclosed spaces - carbon monoxide is a fatal risk.
