Hyundai DHY18COM-1 Review: 17kW / 20.4kVA* Compact Diesel Generator, S 1500rpm, Single Phase
A compact, professionally specified 17kW diesel generator with a 4-cylinder water-cooled engine, DSE6120 MKIII control panel, AVR alternator, ATS compatibility, and red diesel approval - engineered for prime power and serious standby use.
Key takeaways
- It outputs 230V single-phase via busbar connection, runs on standard road diesel or red diesel, and carries Hyundai's 2-year warranty with full UK parts and service backup.
- The DHY18COM-1 is not a generator you wheel out for occasional DIY work or weekend use.
- The central engineering feature of the DHY18COM-1 is its 1,500 RPM 4-cylinder water-cooled engine.
- The inclusion of the Deep Sea Electronics DSE6120 MKIII panel is one of the standout features of the DHY18COM-1.
- The weatherproof silenced canopy reduces operating noise to 70dB at 7 metres while protecting the generator from the elements.
Our Rating
Hyundai DHY18COM-1 Review
If your home, farm, or business has genuine off-grid or backup power requirements at this output level, the DHY18COM-1 delivers a genuinely strong specification at a price that undercuts comparable machines from Pramac, FG Wilson, and Cummins.
This is not a weekend-use machine. It's a serious static installation that warrants proper planning, electrical commissioning, and respect.
What Is the Hyundai DHY18COM-1?

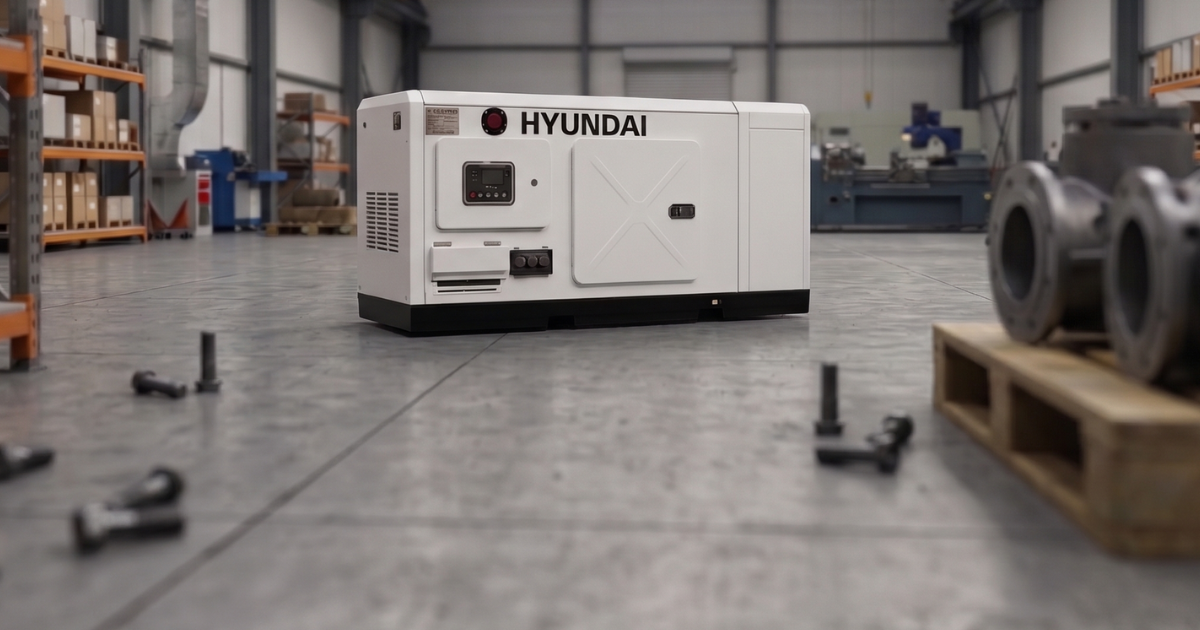

The Hyundai DHY18COM-1 is a compact, silenced-canopy, single-phase diesel generator producing up to 17kW / 20.4kVA (standby) and 15kW / 19kVA (prime power), powered by Hyundai's own 4DW91-29D 4-cylinder, 4-stroke, water-cooled diesel engine running at 1,500 RPM.
It is fitted with a Deep Sea Electronics DSE6120 MKIII control panel, an AVR brushless alternator, a 40-litre fuel tank giving 10 hours of runtime at full load, a weatherproof silenced canopy rated at 70dB at 7 metres, and full ATS compatibility for hands-free automatic power transfer during grid outages.
It outputs 230V single-phase via busbar connection, runs on standard road diesel or red diesel, and carries Hyundai's 2-year warranty with full UK parts and service backup.
This is a machine designed for permanent or semi-permanent static installation — providing prime power to off-grid properties, farms, and light commercial premises, or serving as a fully automated backup generator for homes, businesses, and critical equipment.
DHY18COM-1 Specs at a Glance
| Spec | Detail |
|---|---|
| Engine model | Hyundai 4DW91-29D |
| Engine type | 4-cylinder, 4-stroke, water-cooled, OHV |
| Displacement | 1,809cc (1.809 litres) |
| Rated speed | 1,500 RPM |
| Aspiration | Natural |
| Governor | Electronic |
| Standby output | 17kW / 20.4kVA |
| Prime output | 15kW / 19kVA |
| Phase | Single |
| Voltage | 230V |
| Frequency | 50Hz |
| Max continuous current | 69.6A |
| Power factor | 1.0 |
| Alternator | GP184E brushless, maintenance-free |
| Voltage regulation | AVR |
| Connection method | Busbar |
| Breaker | Delixi 125A |
| Control panel | Deep Sea Electronics DSE6120 MKIII |
| Fuel type | Diesel (road or red diesel) |
| Fuel tank | 40 litres |
| Fuel consumption @ 100% load | 4.94 L/hr |
| Runtime @ 100% load | ~10 hours |
| Engine oil capacity | 8 litres (SAE 15W40) |
| Noise @ 7m (75% load) | 70 dB(A) |
| Noise @ 1m (75% load) | 79.5 dB(A) |
| Housing | Silenced weatherproof canopy |
| ATS compatible | Yes |
| Red diesel compliant | Yes |
| Warranty | 2 years (Hyundai UK) |
| Delivery | Kerbside; forklift required for offload |
View latest price on Hyundai >
Who Is the DHY18COM-1 Generator For?
The DHY18COM-1 is not a generator you wheel out for occasional DIY work or weekend use. At 17kW continuous, it's engineered for serious, sustained, reliable power.
- ✅ Off-grid homes and rural properties
- ✅ Farms and agricultural operations
- ✅ Small to medium businesses
- ✅ Critical home backup installations
- ✅ Hire fleet operators
If you're looking for a generator for occasional garden or site work, this machine is in an entirely different category.
The 4DW91-29D Engine: Why 1,500 RPM Matters
The central engineering feature of the DHY18COM-1 is its 1,500 RPM 4-cylinder water-cooled engine.
Engine Stress and Lifespan
Compared with 3,000 RPM generators, a 1,500 RPM engine operates under significantly less mechanical stress, improving service life and reducing wear over thousands of operating hours.
Noise Levels
The slower engine speed contributes directly to lower noise output. The DHY18COM-1 achieves 70dB at 7 metres, considerably quieter than many open-frame diesel generators.
Fuel Efficiency
At 4.94 litres per hour at full load, the DHY18COM-1 is more fuel efficient than comparable high-RPM machines.
Water Cooling
The water-cooled design maintains stable operating temperatures across varying conditions and is better suited to long-duration use than air-cooled alternatives.
The DSE6120 MKIII Control Panel
The inclusion of the Deep Sea Electronics DSE6120 MKIII panel is one of the standout features of the DHY18COM-1.
- Voltage and frequency monitoring
- Engine RPM display
- Oil pressure and coolant temperature monitoring
- Battery voltage and runtime tracking
- Fault logging with timestamps
- Automatic shutdown protection
- ATS integration
- Remote start capability
This is professional-grade monitoring equipment typically found on considerably more expensive generators.

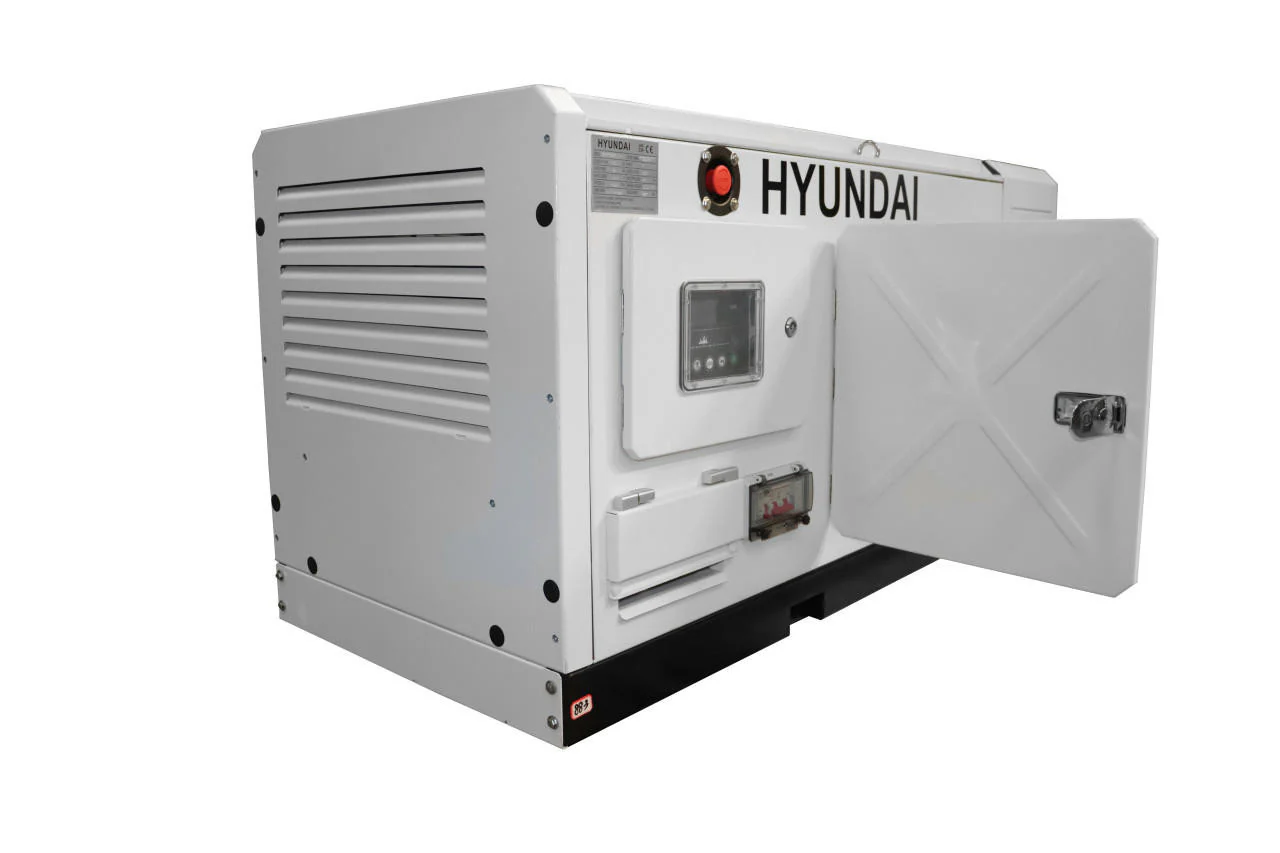

The Silenced Canopy
The weatherproof silenced canopy reduces operating noise to 70dB at 7 metres while protecting the generator from the elements.
The enclosure also includes forklift pockets for installation and positioning.
Fuel Economy and Red Diesel Compliance
The DHY18COM-1 is approved for use with both standard diesel and red diesel.
At full load, fuel consumption is approximately 4.94 litres per hour.
For agricultural and qualifying industrial users, red diesel compatibility can significantly reduce operating costs.
Important: Red diesel use is legally restricted in the UK. Always confirm eligibility with current HMRC guidance.
Practical Installation Considerations
- Professional electrical installation is required
- Installation must comply with BS 7671 regulations
- ATS systems must be properly specified
- Forklift or telehandler offloading is required
- Adequate ventilation and maintenance access are essential
How It Compares: DHY18COM-1 vs Alternatives
| Model | Output | RPM | Panel | Noise | Approx. Price |
|---|---|---|---|---|---|
| Hyundai DHY18COM-1 | 17kW / 20.4kVA | 1,500 | DSE6120 MKIII | 70dB | ~£3,500–£4,500 |
| Hyundai DHY18KSEm | 18kW | 1,500 | Digital | 65dB | ~£4,500–£5,500 |
| Pramac P18P | 18kVA | 1,500 | Deepsea | 68dB | ~£6,500–£8,000 |
Pros and Cons
✅ Pros
1,500 RPM water-cooled engine
DSE6120 MKIII professional control panel
AVR brushless alternator
ATS compatible
Red diesel approved
7
0dB silenced operation
Weatherproof canopy
10-hour runtime
Compact footprint
❌ Cons
2-year warranty only
Forklift required for delivery
Professional commissioning essential
ATS unit sold separately
Single-phase output only
Hardwired busbar connection
✅ Pros
1,500 RPM water-cooled engine
DSE6120 MKIII professional control panel
AVR brushless alternator
ATS compatible
Red diesel approved 7
0dB silenced operation
Weatherproof canopy
10-hour runtime
Compact footprint
❌ Cons
2-year warranty only
Forklift required for delivery
Professional commissioning essential
ATS unit sold separately
Single-phase output only
Hardwired busbar connection
Jim's Verdict
Score: 4.5/5
The DHY18COM-1 is a genuinely impressive compact diesel generator with a professional-grade specification at a highly competitive UK price point.
The combination of a 1,500 RPM water-cooled engine, DSE6120 MKIII control panel, ATS compatibility, and red diesel approval makes it particularly compelling for farms, rural homes, off-grid properties, and businesses requiring dependable standby or prime power.
For buyers needing serious backup or off-grid power without stepping into the price territory of premium industrial brands, the DHY18COM-1 represents excellent value.
⚠️ Important Safety and Legal Notes
Diesel generators produce carbon monoxide exhaust and must never be operated in enclosed spaces.
Installation must comply with BS 7671 regulations and be certified by a competent electrician.
Always confirm red diesel eligibility under current HMRC guidance before use.
Jim Fellows is a contributor at Garden-Review, covering garden machinery, power equipment, and outdoor tools for UK gardeners and landowners.
Frequently Asked Questions: Hyundai DHY18COM-1 Review
What is the difference between standby and prime power?
Why choose a 1,500 RPM diesel over a 3,000 RPM generator?
Can the DHY18COM-1 run on red diesel?
Does the DHY18COM-1 start automatically during a power cut?
What fuel consumption should I expect?
Is professional installation required?
What does the DSE6120 MKIII control panel do?
What warranty does the DHY18COM-1 carry?
Does the DHY18COM-1 require a forklift for delivery?
