Which Hyundai compactor plate is best for a DIY driveway project?

For most UK home driveway and large patio projects, the Hyundai HYCP9070 (81.5kg) is the top choice. It features a powerful 196cc engine and a 13kN compaction force, which provides the 300mm depth needed to ensure a stable sub-base for vehicles. While the smaller HYCP5030 is excellent for garden paths, the HYCP9070’s larger plate size (540mm x 420mm) allows you to finish bigger areas much faster

What is the difference between the Hyundai HYCP5030, HYCP6570, and HYCP9070?

The primary differences are weight and compaction depth. HYCP5030 (50kg): Best for light landscaping and narrow paths (200mm depth). HYCP6570 (60kg): A versatile "middle-ground" for medium patios (250mm depth). HYCP9070 (81.5kg): The heavy-duty flagship for driveways and foundations (300mm depth). Generally, as the model number increases, you get a larger engine, a wider plate, and more "hitting power" (kN) for deeper compaction.

Can I use a Hyundai petrol compactor plate on block paving?

Yes, but you must use a paving pad (sometimes called a rubber mat). All three Hyundai models mentioned are compatible with paving pads—which are often included in the box. Using the compactor without this protective mat will likely crack or scratch your paving stones. The pad cushions the vibration, allowing you to settle the blocks into the sand without damaging the surface.

Is it better to buy or hire a wacker plate for a garden renovation?

In 2026, buying a Hyundai compactor plate often proves more cost-effective than hiring if your project lasts more than 3-4 days. With tool hire rates in the UK rising, the "break-even" point is reached quickly. Ownership also gives you the flexibility to work at your own pace and provides a high resale value once your garden transformation is complete.

How do I maintain my Hyundai petrol compactor plate to make it last?

To ensure longevity, perform these three simple steps: Check the Oil: Use SAE30 or 15W40 engine oil and check levels before every use. Clean the Air Filter: Compacting is a dusty job; a clogged filter will starve the engine of air. Inspect the V-Belt: Ensure the drive belt is tensioned correctly and free of debris. Hyundai’s 3-year platinum warranty provides peace of mind, provided these basic maintenance steps are followed.

Are Hyundai compactor plates easy to transport in a standard car?

Yes. Hyundai has designed these models with foldable handles, making them surprisingly compact. While the HYCP5030 can fit in most small hatchbacks, the heavier HYCP9070 is best suited for a small van or a large estate car. Most models also come with a built-in wheel kit, allowing one person to manoeuvre the machine around the driveway or into a garage for storage.

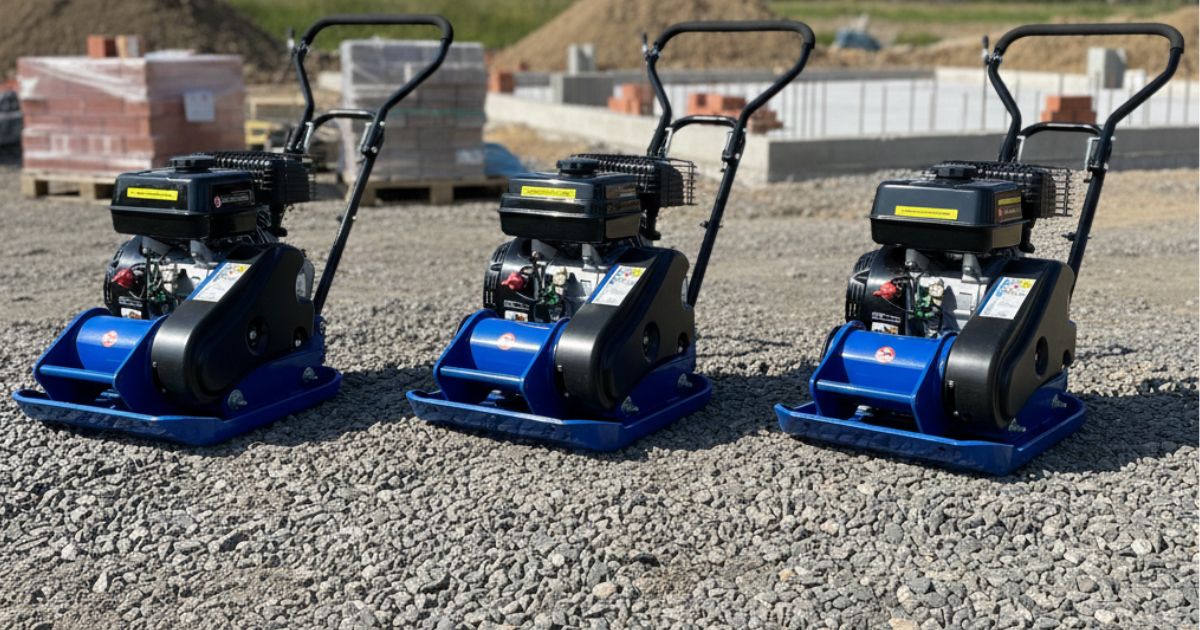

Which Hyundai Compactor Plate Should You Choose?

If you're preparing ground for a patio, driveway or shed base, choosing the right compactor is essential. So, which Hyundai compactor plate should you choose?

Hyundai offers three main petrol plate compactors in the UK:

HYCP5030 – Lightweight DIY model
HYCP6570 – Mid-range all-rounder
HYCP9070 – Heavy-duty professional model

This guide compares all three models using real-life examples to help you decide which one suits your project.

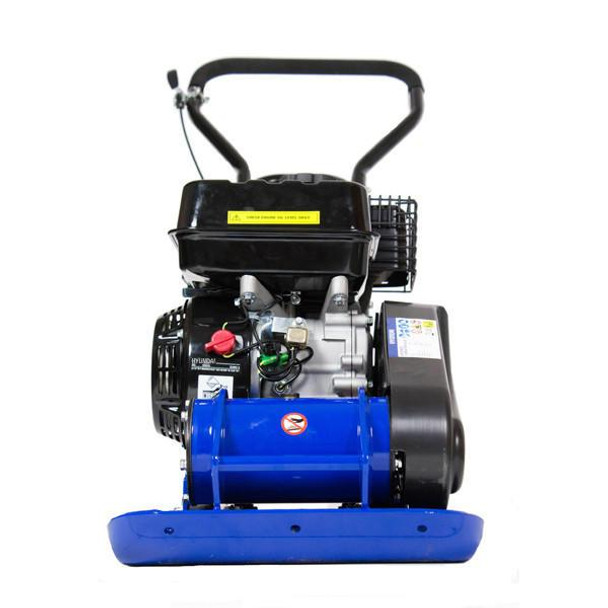

Hyundai HYCP5030 – Best for Small DIY Jobs

The HYCP5030 is the smallest and lightest model in the Hyundai range. It's ideal for homeowners tackling smaller landscaping projects.

Engine: 78.5cc 4-stroke petrol

Weight: Approx. 30kg

Plate size: 495mm x 320mm Compaction depth: Up to 150mm

Best for: Garden paths, small patios, shed bases

View the this Wacker plate on Amazon Hyundai >

Real-Life Example

James from Kent used the HYCP5030 to compact the sub-base for a 12m² porcelain patio. The lightweight design made it easy to manoeuvre between tight garden borders, and it provided enough compaction for a stable finish without overkill.

Who should choose it?
If you're laying a small patio, installing stepping stones or preparing a shed base, this model gives you enough power without unnecessary weight or cost.

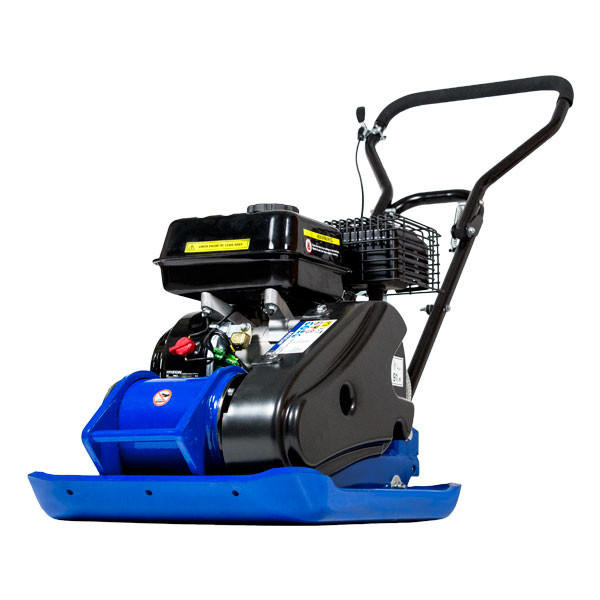

Hyundai HYCP6570 – The Best All-Rounder

The HYCP6570 is the most versatile model in the Hyundai range. It offers significantly more power than the 5030, making it ideal for medium-sized landscaping and driveway preparation.

Engine: 196cc 4-stroke petrol

Weight: Approx. 60kg

Plate size: 530mm x 370mm Compaction depth: Up to 250mm

Best for: Patios, block paving, larger shed bases

View the HYCP6570 on Amazon Hyundai >

Real-Life Example

Sarah in Hertfordshire used the HYCP6570 while installing a 25m² block paving patio. The additional weight and deeper compaction gave her confidence that the sub-base would stay solid long-term, especially in heavy clay soil.

Who should choose it?

If you're completing multiple landscaping projects or preparing a medium driveway area, this is the best balance between performance and manoeuvrability.

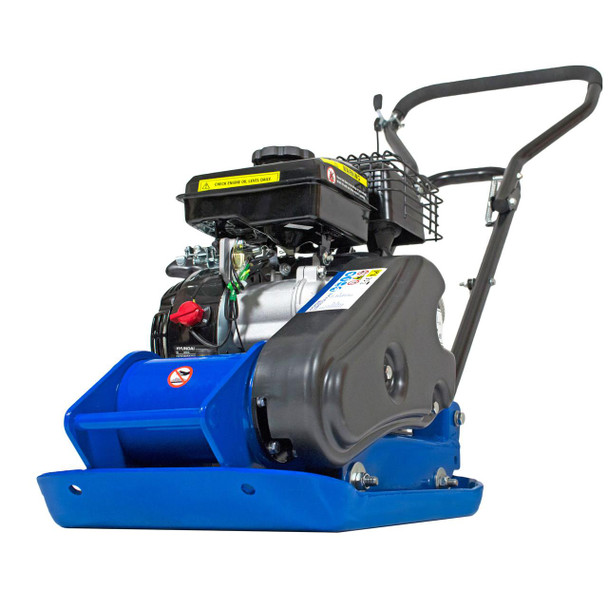

Hyundai HYCP9070 – Best for Driveways & Heavy-Duty Work

The HYCP9070 is the largest and most powerful of the three models. Designed for deeper compaction and heavier materials, it’s ideal for driveway installations and larger groundwork jobs.

Engine: 196cc 4-stroke petrol

Weight: Approx. 78–86kg

Plate size: 540mm x 420mm Compaction depth: Up to 300mm

Best for: Driveways, large patios, groundwork projects

View the HYCP9070 on Amazon Hyundai >

Real-Life Example

Mark, a DIY renovator in Manchester, used the HYCP9070 when preparing the sub-base for a new block-paved driveway. The extra compaction depth meant fewer passes were needed, saving time while ensuring a solid foundation for vehicle traffic.

Who should choose it?

If you're installing a driveway or compacting thick hardcore layers, this model provides the strength and depth required for long-term durability.

Quick Comparison: Which Hyundai Compactor Plate Should You Choose?

Model	Engine	Weight	Compaction Depth	Best For
HYCP5030	78.5cc	~30kg	150mm	Small DIY jobs
HYCP6570	196cc	~60kg	250mm	All-round landscaping
HYCP9070	196cc	78–86kg	300mm	Driveways & heavy work
