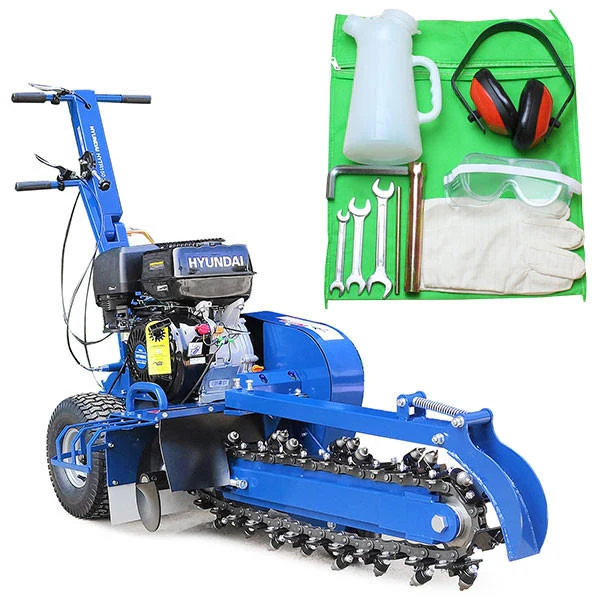

What Is the Hyundai HYTR150?

The Hyundai HYTR150 is a 420cc, 14hp walk-behind petrol trencher, priced at £1,799.99 inc. VAT (£1,499.99 ex. VAT), available for pre-order with shipping from 18 May 2026. It's powered by Hyundai's own IC420 OHV 4-stroke single-cylinder engine, cuts to a maximum depth of 600mm at four adjustable depth settings, and can trench at up to 60 metres per hour.

The machine weighs 170kg net (195kg gross), is 720mm wide - narrow enough to pass through a standard garden gate - and is designed for professional use in drainage, cable laying, pipe installation, and construction groundworks. It carries Hyundai's 3-year Platinum Warranty for home/professional use.

Check Price on Hyundai →

---

Hyundai HYTR150 Specs at a Glance

Spec	Detail
Engine model	Hyundai IC420
Engine type	OHV single cylinder, 4-stroke
Engine capacity	420cc
Rated power	14hp
Rated speed	3,600 RPM
Start method	Recoil
Fuel	Petrol
Fuel tank capacity	6.5 litres
Engine oil capacity	1,100ml (SAE 30 or 15W40)
Clutch type	Centrifugal
Chain length	2,000mm
Chain type	27 tungsten carbide alloy teeth
Max chain speed	550 m/min
Trench depth	150 / 300 / 450 / 600mm (4 settings)
Trench width	100mm
Trenching speed	Up to 60m/hr
Machine width	720mm
Dimensions (H × W × L)	1,100 × 720 × 2,100mm
Net weight	170kg
Gross weight	195kg
Wheel diameter	380mm (15")
Sound level	116dB
Safety	Dead-man engine kill switch
Warranty	3 years (home/professional), 1 year commercial
Price	£1,799.99 inc. VAT

---

Who Is the Hyundai HYTR150 Best For?

The HYTR150 sits in a clear gap in the market: more capable than the lightweight electric or sub-200cc petrol machines available under £1,000, but more accessible (in price, weight, and access) than full-size tracked trenchers that cost upwards of £5,000 and require transport on a trailer.

It's best suited to:

• Landscaping and groundworks contractors who regularly lay irrigation pipes, drainage runs, or ducting and want to own rather than hire
• Electrical and utilities sub-contractors needing to trench for cables and conduit across multiple sites
• Estates, farms, and large-acreage properties where regular drainage maintenance justifies ownership
• Ground-works DIY on serious projects - self-builders, barn conversions, or large garden landscaping where hire costs over a week would exceed the purchase price
• Hire fleet operators looking for a capable, narrow-access petrol trencher with genuine manufacturer warranty and UK parts support

It is not the right machine for occasional one-off trench digging - the size, weight, and price mean a single-day hire at a local tool hire shop will be more economical for small jobs.

---

The IC420 Engine: Why It Matters

The heart of the HYTR150 is Hyundai's own IC420 - a 420cc, OHV single-cylinder 4-stroke engine producing 14hp at 3,600 RPM. For context, this is a meaningfully large engine for a walk-behind machine. Entry-level petrol trenchers typically use 200–250cc units producing 6–7hp; the IC420 has roughly double the displacement and close to double the power output.

In practical terms, a larger engine matters for trenching because ground resistance is highly variable. Clay soils, compacted stone, or root-filled ground can bog down lower-powered machines and stall the chain. A 14hp engine maintains chain speed through harder going without the operator needing to slow down or make multiple passes.

The recoil start is worth noting at this price point. Some comparable machines in this class have moved to electric key start, which is more convenient - particularly on cold mornings. The HYTR150's recoil start is simpler, more reliable mechanically, and eliminates battery-related failure points, but it does require a fit operator and good starting technique on a cold engine.

Engine verdict: Genuinely well-specified for a walk-behind machine in this class. The IC420 is the same engine family Hyundai uses across its pressure washer and compressor range, so service knowledge and parts availability are well-established in the UK.

---

The Chain System: Tungsten Carbide Teeth

The HYTR150 uses a 2,000mm chain carrying 27 replaceable teeth tipped with tungsten carbide alloy - a material approximately 10 times harder than steel, more commonly associated with mining and tunnelling equipment than garden machinery.

The practical significance of tungsten carbide tipping is durability in abrasive conditions. Standard hardened-steel teeth wear rapidly in gravel, compressed stone, or clay with flint content — common soil types across much of the UK. Tungsten-carbide tips maintain a cutting edge significantly longer, reduce the frequency of tooth replacement, and sustain cutting speed through harder ground.

The 2,000mm chain length enables the 600mm maximum trench depth - the chain wraps around the cutting bar, so the effective chain run from ground level to maximum depth requires sufficient length in reserve. At 550 m/min maximum chain speed, the HYTR150 cuts aggressively rather than grinding slowly through material.

Teeth are individually replaceable, which is important for total cost of ownership. When a tooth wears or chips, you replace that tooth - not the entire chain assembly. Hyundai's UK parts operation means replacements are available domestically.

---

Trench Depth and Width

The HYTR150 cuts a 100mm wide trench at four depth settings: 150mm, 300mm, 450mm, and 600mm. The ability to set depth before starting rather than adjusting continuously is useful for consistency over long runs.

What these depths are suitable for:

• 150mm: Surface conduit, low-voltage cable, irrigation laterals, lawn edging work
• 300mm: Standard water supply pipe, communications conduit, shallow drainage runs
• 450mm: Sub-soil drainage, mains water service pipe (minimum depth in many UK installations), power cable with ducting
• 600mm: Deep drainage, main sewer lateral connections, ducting requiring frost protection, or any installation where building regulations or network operator specifications require greater cover depth

The 100mm trench width accommodates single pipes, ducting, or cable up to 90–95mm outer diameter - which covers most residential and light commercial installation pipe sizes. It won't accommodate twin-wall corrugated drainage pipe (typically 110mm OD) without some additional hand tidying of the trench edge, which is worth factoring in for drainage-heavy applications.

---

Manoeuvrability and Site Access

At 720mm wide and 170kg, the HYTR150 occupies an important practical niche: it's the largest walk-behind trencher that will reliably pass through a standard UK domestic garden gate (typically 900–1,000mm clear opening). That matters enormously for residential landscaping and drainage work, where getting equipment to the rear of a property without lifting it over a fence or dismantling a gate is a real daily consideration.

The machine runs on two 380mm (15") pneumatic tyres. Pneumatic tyres absorb ground irregularities and reduce vibration transmitted to the operator compared to solid rubber wheels - important given the 116dB operating sound level and the physical demands of walking behind a 170kg machine for extended periods.

The adjustable soft-grip handlebars allow the operator to set a comfortable working height, reducing fatigue on longer trenching runs. Wheel brake and engine throttle are both handlebar-mounted - the operator doesn't need to reach down to the machine body to make control adjustments.

The dead-man kill switch - which cuts the engine if the operator releases the handlebar - is standard safety practice on this class of machine and complies with operator safety expectations for professional site use.

---

Trenching Speed and Productivity

Hyundai's stated trench rate of up to 60 metres per hour needs context. In ideal conditions — light to medium soil with no significant stone or root content - 60m/hr is achievable. In heavy clay, compacted fill, or stony ground, expect 20–35m/hr as a more realistic working rate.

For planning purposes on a typical residential drainage or cable job: a 20-metre trench in average UK garden soil (variable, usually some clay content) will take 25–45 minutes including setup and clearance. Compare that to manual digging at 2–4 metres per hour for a single labourer, and the productivity case is clear - the machine is comfortably 8–15x faster than hand digging in typical conditions.

The side-mounted auger that clears spoil from the chain area is a practical design detail. On machines without a spoil auger, the chain area can pack with loose material and require frequent stopping to clear. The HYTR150's auger keeps the chain running cleanly, maintaining productivity over longer continuous runs.

Check Price on Hyundai →

---

How Does It Compare? HYTR150 vs Competitors

Model	Engine	Max Depth	Width	Start	Price Guide
Hyundai HYTR150	420cc / 14hp	600mm	720mm	Recoil	£1,799.99
Ditch Witch SK5	208cc / 5.5hp	610mm	838mm	Recoil	£2,800–£3,200
Barreto 1324-B	Briggs 9hp	610mm	965mm	Recoil	£3,500–£4,500
Ground Hog HD-99	Honda GX270 / 9hp	762mm	965mm	Recoil	£2,500–£3,000
Husqvarna DT22	Honda GX120 / 4hp	450mm	560mm	Recoil	£1,200–£1,600
Local hire (day rate)	—	Variable	—	—	£150–£250/day

The honest comparison: The HYTR150 is priced aggressively for its engine specification. Ditch Witch and Barreto - the market-leading North American trencher brands - charge significantly more for machines with less engine capacity. The Ground Hog HD-99 with a Honda GX270 (9hp) is consistently priced above £2,500 for the equivalent depth capability.

The HYTR150 undercuts these established competitors by £700–£2,500 while offering a larger engine. The trade-off is brand track record — Hyundai Power Products is relatively newer to this category than Ditch Witch or Barreto, and long-term reliability data over 5+ years is more limited. The 3-year warranty and UK parts backing goes some way to addressing that risk, but contractors running machines daily in commercial use may still prefer the established names.

For owner-operators running 1–3 machines and doing 50–150 trenching days per year, the HYTR150 represents strong value. For hire fleets expecting 300+ operating days annually, the proven track record of established brands may justify the premium.

---

Pros and Cons

✅ What We Like

Substantial 420cc / 14hp engine - significantly more power than most competitors at this price

600mm maximum depth covers the full range of residential and light commercial trench requirements

Mining-grade tungsten carbide teeth - longer service life in abrasive UK soil conditions

720mm width passes through standard domestic gate openings - a genuine practical advantage

Four adjustable depth settings from 150mm to 600mm cover the full range of installation types

Side-mounted auger keeps the chain clear during extended runs

Dead-man safety kill switch as standard

Competitive price — notably undercuts established brands at equivalent specification

3-year Platinum Warranty with full UK parts support

Free UK delivery included

❌ What to Consider

Recoil start only - no electric key start option at this price point

170kg net weight requires planning for site access and transportation - you need a suitable trailer or van bed

116dB operating noise - hearing protection is essential; consider residential neighbour constraints

100mm trench width won't accommodate 110mm+ OD drainage pipe without additional hand-finishing

Pre-order only at time of writing - shipping from 18 May 2026

Brand track record in the trencher category is newer than Ditch Witch or Barreto

Check Price on Hyundai →

---

Transport and Storage

At 195kg gross, the HYTR150 will not fit in a standard car boot or van — you'll need a flatbed trailer (or a long-wheelbase high-roof van with a ramp and securing points) to transport it between sites. This is standard for any machine in this class and not a criticism specific to the HYTR150, but it's a practical consideration that affects total operating cost for smaller contractors without existing trailer infrastructure.

For storage, the machine requires a dry, level area. The 6.5-litre fuel tank should be run down or treated with fuel stabiliser for storage periods over a month to prevent gumming in the carburettor — a standard practice with any 4-stroke petrol engine.

---

Final Verdict

Score: 4.6/5

The Hyundai HYTR150 is a well-specified, professionally capable walk-behind trencher at a price that meaningfully undercuts comparable machines from established market leaders. The 420cc IC420 engine is the standout specification — more displacement and more power than most machines in this bracket — backed by tungsten carbide tooling that holds up in the variable and often abrasive soil conditions typical of UK sites.

The lack of electric start is the only genuine compromise at £1,799.99, and it's a reasonable one for a machine of this weight and application. The 3-year warranty and UK parts availability address the legitimate concern about Hyundai's relative newness to the trencher category.

For landscaping contractors, groundworkers, or large-property owners who trench regularly enough to justify ownership over hire - typically more than 10–15 trenching days per year — the HYTR150 makes a compelling financial case. At full hire rates of £150–£250 per day, the machine pays for itself in 8–12 days of equivalent hire.

Buy it if you trench regularly and want to own rather than hire. Evaluate alternatives if you need proven long-term reliability data or a 300+ day annual operating cycle on a hire fleet.

Check Price on Hyundai →

---

Review based on published specification data and expert assessment of the UK petrol trencher market. Price correct at time of publication (May 2026). Pre-order availability confirmed via Hyundai Power Products UK. Always check for buried services using a cable avoidance tool (CAT) and follow HSE guidance before any ground-breaking work.

---
